These wire looms are designed to securely hold electric equipments while also providing protection for the user.
In industrial settings, where workers are often required to use electric tools for extended periods of time, wire assemblies can help reduce the risk of injury and fatigue. By holding the tool securely in place, the user can focus on the task at hand without worrying about dropping or losing control of the tool.
Electric wiring harnesses can also help improve productivity by allowing workers to move freely around the workspace without having to constantly set down and pick up their tools.
|
Product |

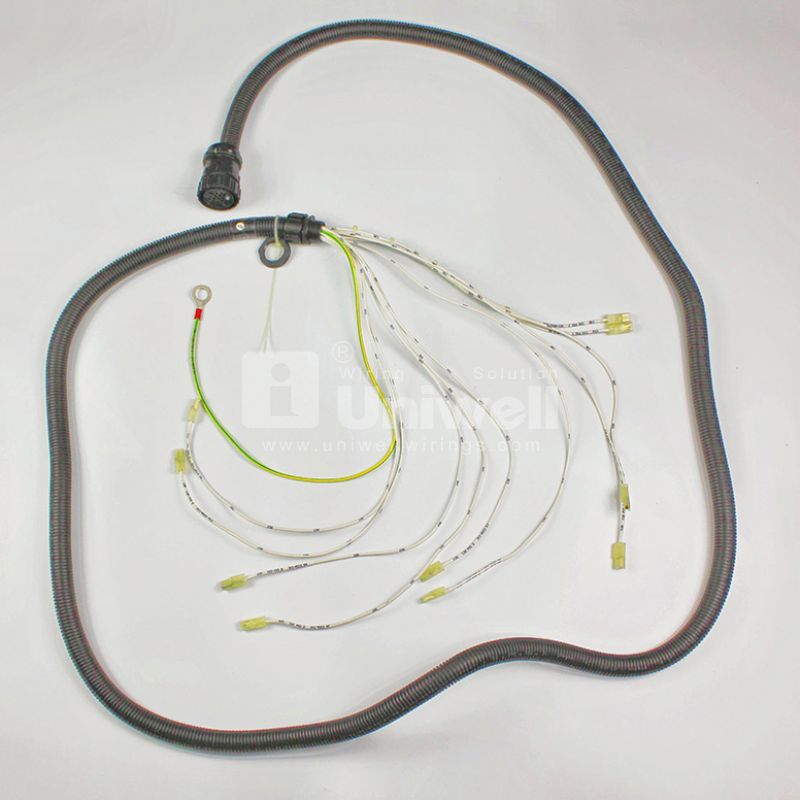

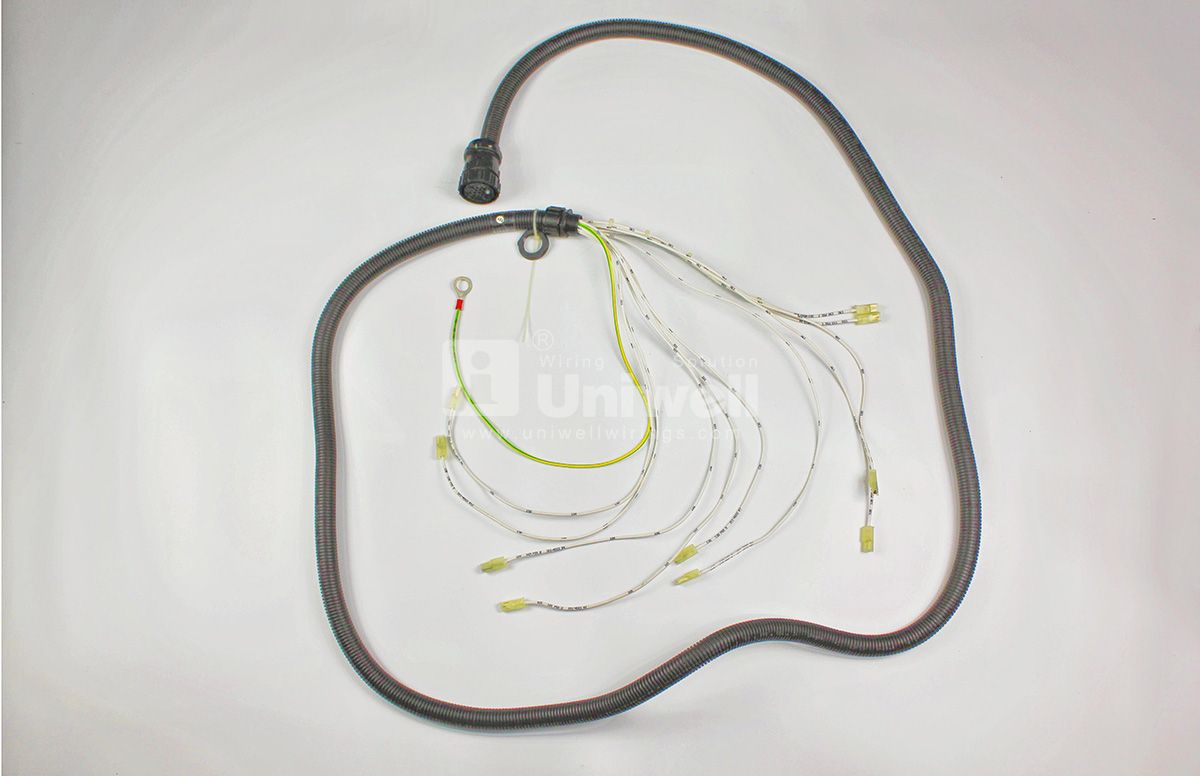

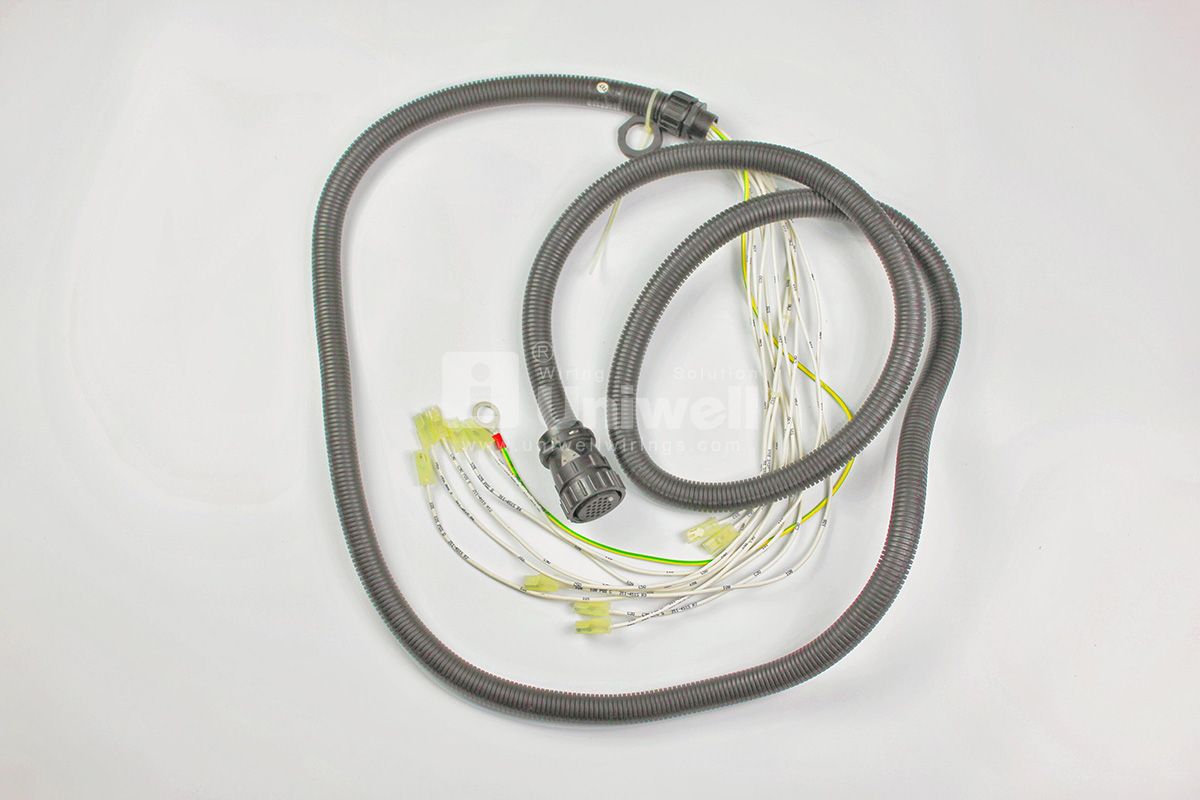

Electrical Special Purpose Harness Assembly for Engine Power |
|
Specification |
Custom Cable & Wire Harness / OEM,ODM Connector: Aerial Plug UAC20TR 9P Male Head Main Body PA66 Black PIN Plated Pin UTL: SD20-9 Heat-Shrinkable Tube 1: 2.0mm Black Environment Friendly Withstand Voltage 600V 125℃ Heat-Shrinkable Tube 2: 3.0mm Black Environment Friendly Withstand Voltage 600V 125℃ |
|
Insulated Resistance |
≥10MΩ |
|
On Resistance |
≤3Ω |
|
Connectors |

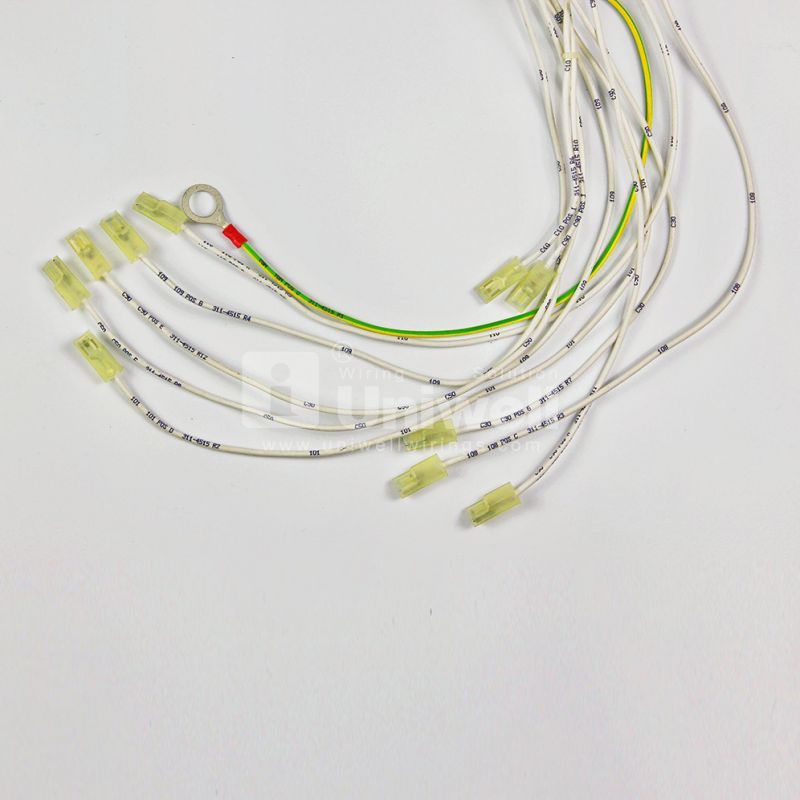

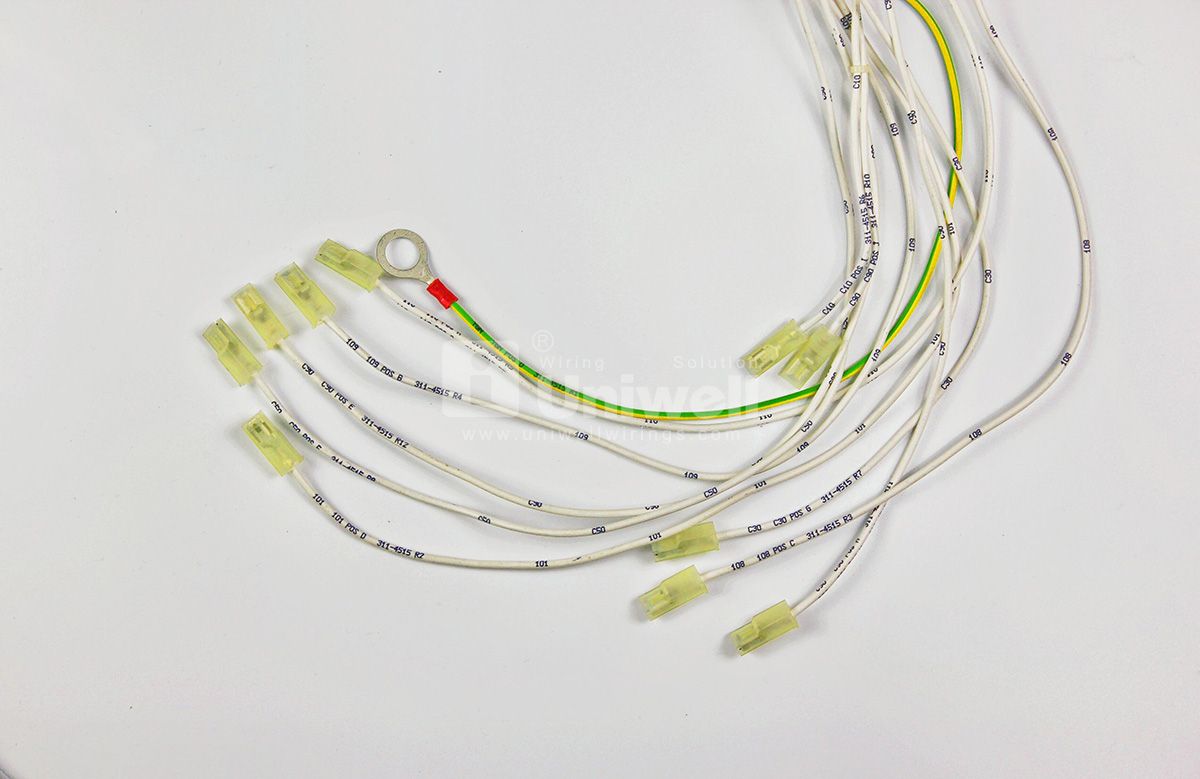

Flashboard Terminal Phosphor Bronze Tin-Plated Applicable Wire Diameter 14~18#; Wire gauges ranging from 20 gauge signal wire to 4/0 power cable |
|
Salt Spray Test |
≥48 h |
|
Cable |
(3C*18#(37/0.16)+AB)+1C*20#(19/0.19)+2P*22#(19/0.15) Jacket TPU Black OD: 10.6土0.2mm (Drag Chain 5000000) |
|
R&D |
Provide complete engineering and design services |
|
Certification |
ISO9001, UL, ROHS, IATF 16949(Applying) |
|
QC |
Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance. |
|
MOQ |
50-200/Trail Order in sample way,no MOQ restrictions |
